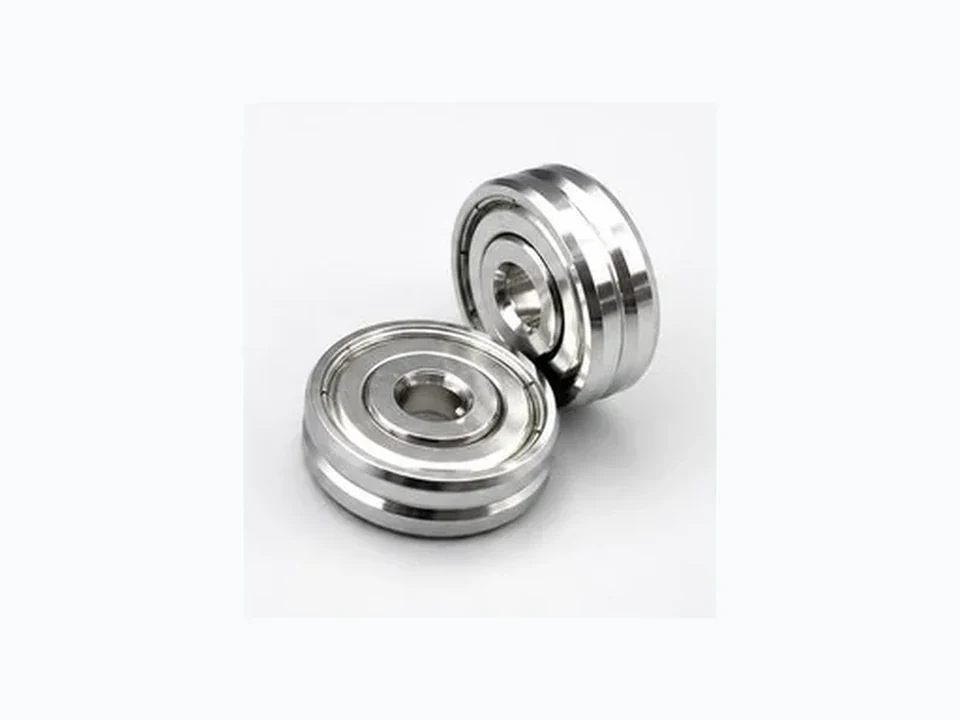

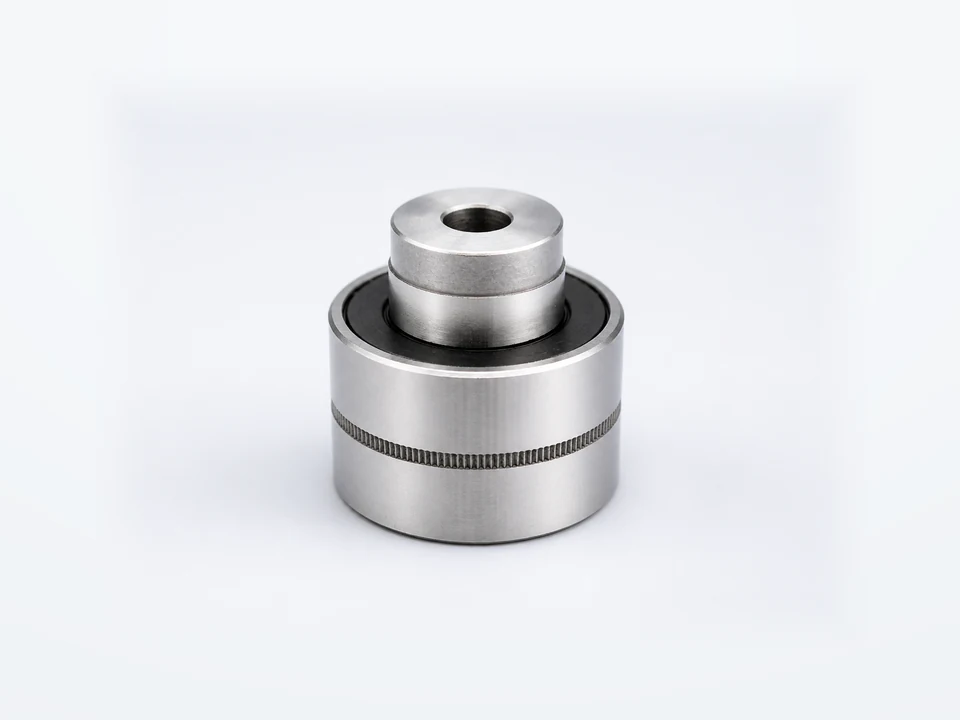

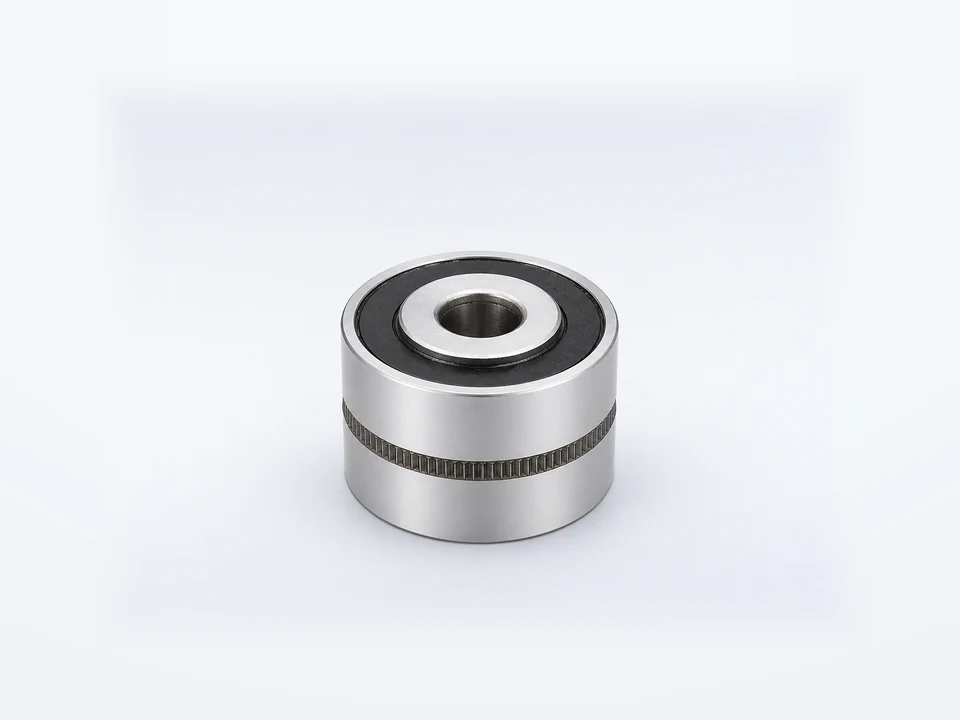

Guide Wheels & Straightening Roller Bearings: V-Groove and U-Groove

Series in this line

Click any series concept below. For specific part numbers, dimensions and replacement references, send us your drawing or part number.

V-Slot / U-Slot Series ⌄

30.M.13 / 30.M.14 / 420-M.294 series

校直轮 / 轮胎子午线轴承 — V-groove and U-groove profiles for tire building and straightening machines. Same product as "tire meridian bearings" (校直轮 = 轮胎子午线轴承, two names).

Model	d × D × B (mm)
30.M.14.078-00	4×13×5
30.M.14.078-01	4×13×5
30.M.14.078-02	4×16×5
30.M.14.078-04	4×16×5
30.M.14.078-07	4×16×5
30.M.14.078-08	4×16×5
420-M.294.011/1	4×13×5
420-M.294.012/1-01	4×16×5
30.M.13.236-00	8×22×7
30.M.13.236-05	8×22×7
30.M.13.236-06	8×22×7
30.M.14.078-12	8×22×7
30.M.14.078-15	8×22×7
420-M.294.019/1	8×22×7
30.M.13.236-01	10×30×8
30.M.13.236-02	10×30×14

16 models in this series · Request a quote →

WR / International Series ⌄

WR13 · WR16 · WR22 · WR31 · WR40

International-standard straightener bearings. WR prefix designates wire/tube straightening applications. Compatible with global OEM machine specs.

Model	d × D × B (mm)
-01 (WR13)	4×13×5
-02 (WR16-A)	4×16×5
-04 (WR16-B)	4×16×5
-05 (WR16-C)	4×16×5
-07 (WR16-D)	4×16×5
A5.03	5×17×6
A6.04	6×19×6
-09 (WR22-A)	8×22×7
-10 (WR22-B)	8×22×7
-12 (WR22-C)	8×22×7
-15 (WR22-D)	8×22×7
U8.06	8×24×8
WR31	8×31×10
WR40	12×40×12

14 models in this series · Request a quote →

Tire Meridian (Building Machine) ⌄

Tire building drum · Tread machines

Bearings for tire building machines — drum support, tread winding, bead setting. Custom profiles and compounds to match specific tire machine brands. (= 校直轮, same product family)

Same models as V-Slot/U-Slot and WR series above. Tire meridian bearings and 校直轮 are the same product. Send your machine model or drawing. Request a quote →

Aligner Bearings ⌄

Tire building aligner · Drawing-based

Tire alignment and forming equipment. Precision-ground profile for consistent tire geometry. Specific references confirmed per inquiry.

Send us your drawing or OEM machine model for aligner bearings. Request a quote →

Tensioner Bearings ⌄

PA139 · 139PSA · DK13740 series

Tensioner bearings for belt, chain and timing systems. Common references: PA139, 139PSA, DK13740 and variants. Crowned or flat profile, with or without flange. Also used in conveyor and packaging machinery.

Send us your part number for this series. Request a quote →

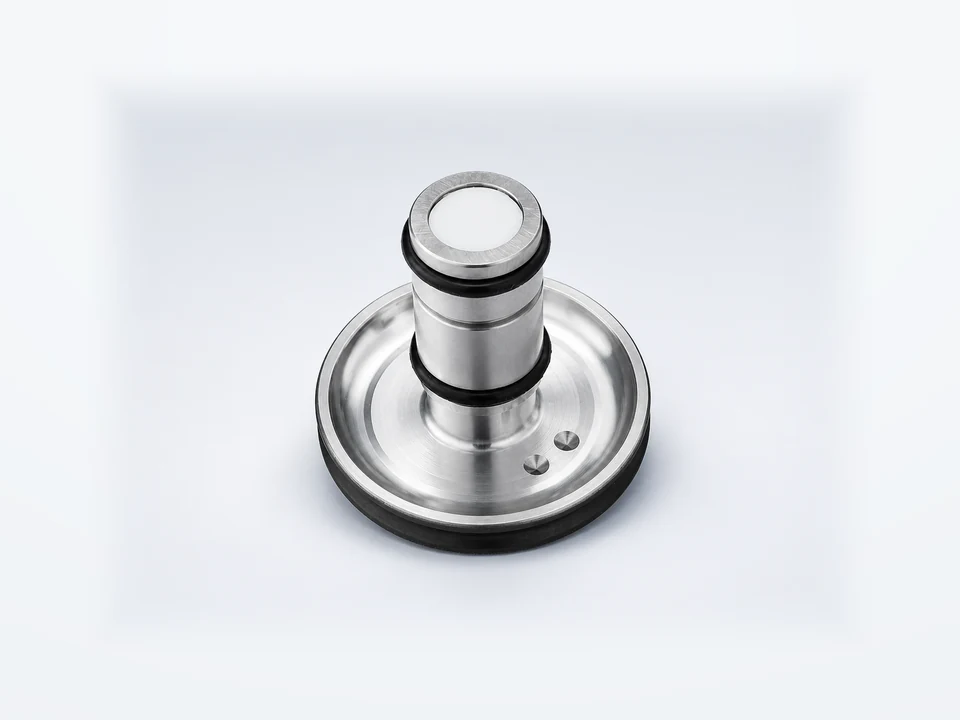

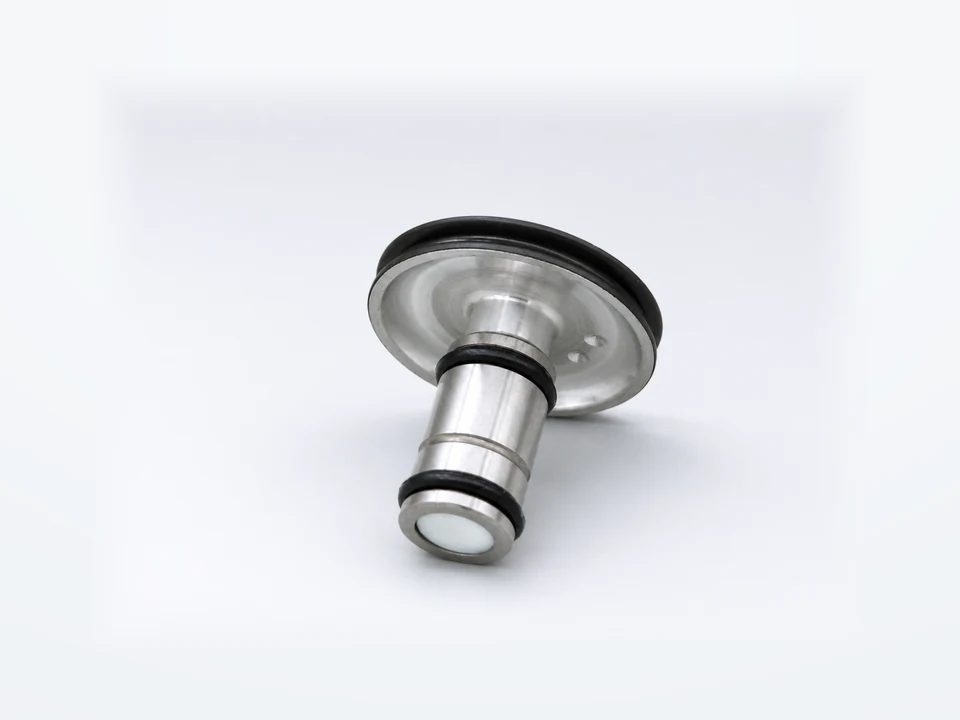

Custom Guide Wheels ⌄

Drawing-based · Profile matching

Send your drawing, sample or machine spec. We manufacture custom profiles, compounds and tolerances for OEM guide wheel applications.

Custom — send your drawing. Request a quote →

Available options (confirmed per inquiry)

Profile: Custom / Standard
Material: Bearing Steel / Custom compounds
Sourcing: Drawing-based quotation

Specific configurations are confirmed per quotation. We do not claim every option is in stock for every model — we verify before quoting.

What guide and straightening roller bearings do

A guide or straightening roller is defined by the material it contacts and the geometry it must control. The groove is machined directly into the bearing outer ring, so groove profile, working diameter, edge radius, runout, surface condition and mounting must be specified together with the internal bearing. Our verified range covers V-groove and U-groove guide-wheel bearings. See the guide and straightening roller design guide.

V-groove or U-groove?

V-groove: a single centred V groove in the outer ring. Specify groove angle, contact position, working diameter and edge transition.
U-groove: a U-shaped groove for wire, thread, cable or a round rail. The groove radius is matched to the wire or rail diameter — too tight pinches, too loose lets the wire wander. See 624UU and 625UU-type U-groove guide bearings.

Groove, runout and sealing on wire and cord lines

On steel cord and tire lines, the groove profile and radius decide how the cord is supported, radial runout of the groove produces a periodic tension change once per revolution, and rubber particles, steel fines and lubricant mist must stay out of the bearing. See guide rollers for tire steel cord lines.

Identify a replacement by measurement

Trade designations for guide wheels are widely used but not standardised, so two parts sold under the same name can differ. Measure bore, outside diameter, width and groove radius, and check the shield or seal on the sample. We make U-groove and V-groove guide wheels to designation, sample or drawing.

What to send for a quotation

Designation, sample or drawing.
Groove type, angle or radius, and working diameter.
The wire, cord or strip being guided and the line speed.
Runout and seal requirements, and the quantity.

Frequently asked questions

What is the difference between V-groove and U-groove guide wheels?

A V-groove has a centred V profile defined by its angle; a U-groove has a radius matched to the wire, cord or round rail it carries.

Are 624UU guide wheels all the same?

No. The designation is widely used but not standardised. Confirm bore, outside diameter, width, groove radius and shields by measuring the sample.

Why does groove runout matter?

Radial runout of the groove changes the wire or cord tension once per revolution, which shows up as uneven tension or surface marks.

Can you make guide wheels to a drawing or sample?

Yes. We make U-groove and V-groove guide wheels to designation, sample or drawing.
