Custom Bearing Solutions

When the catalog stops, engineering starts.

Standard catalogs cover standard machines. When yours needs a bore that doesn't exist, an outer ring with a profile, or a clearance and noise spec the catalog can't hit — that's a custom project, and it starts with a manufacturability review, not a quote.

Send a drawing, a sample, or just the operating conditions. We machine our own rings in-house, so what we review is what we can actually make.

Send Drawing or Specs See Real Cases

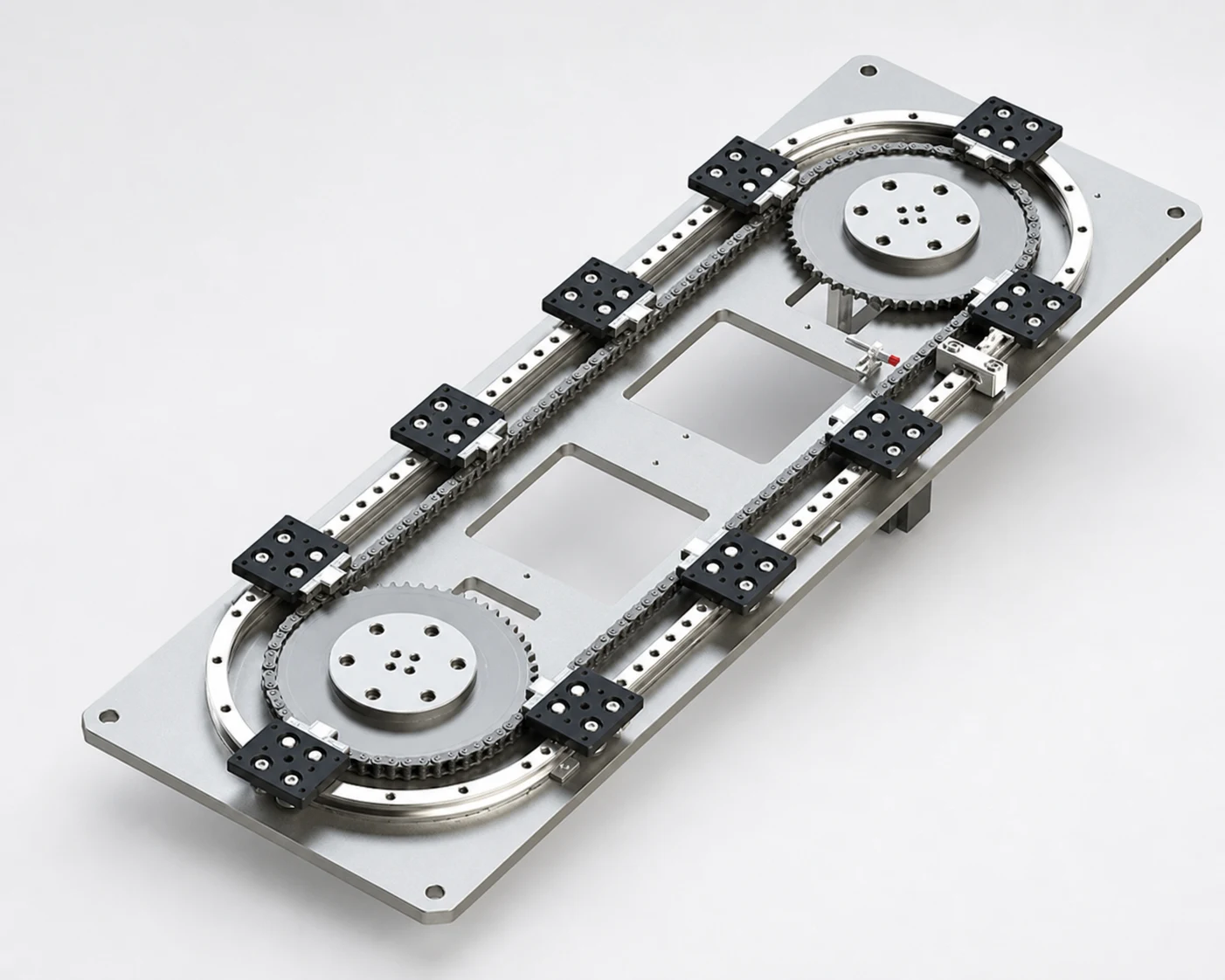

Ring slide assembly for battery and medical production lines - NLHB custom bearing application
Capability Matrix

Six dimensions, confirmed per project

DimensionWhat we take onWhat we need from you
DimensionsNon-standard bore / O.D. / width, inch sizes, envelope-constrained partsDrawing, sample, or d × D × B + mounting space
StructureThick-walled outer rings, crowned / grooved outer profiles, flanges, extended inner rings, special seal slotsDrawing or sample for reverse engineering
Internal geometryRaceway profile, ball complement, contact angle, cage typeLoad spectrum, speed, stiffness requirements
MaterialBearing steel, stainless (420 / 440 class), per applicationCorrosion / temperature / food-grade requirements
Sealing & lubricationOpen, ZZ, 2RS, custom seals; grease per speed and temperatureEnvironment: dust, moisture, washdown
Precision & noiseClearance groups, vibration groups, controlled runoutMachine-level noise and runout targets
Case Studies

Every case says what changed and how it's controlled

Real parts, real applications. Parameters are confirmed per project — we publish what we can evidence.

NLHB Improved Structure Ring slide bearing unit - NLHB separated inner ring design Ring slide assembly - battery and medical production line application

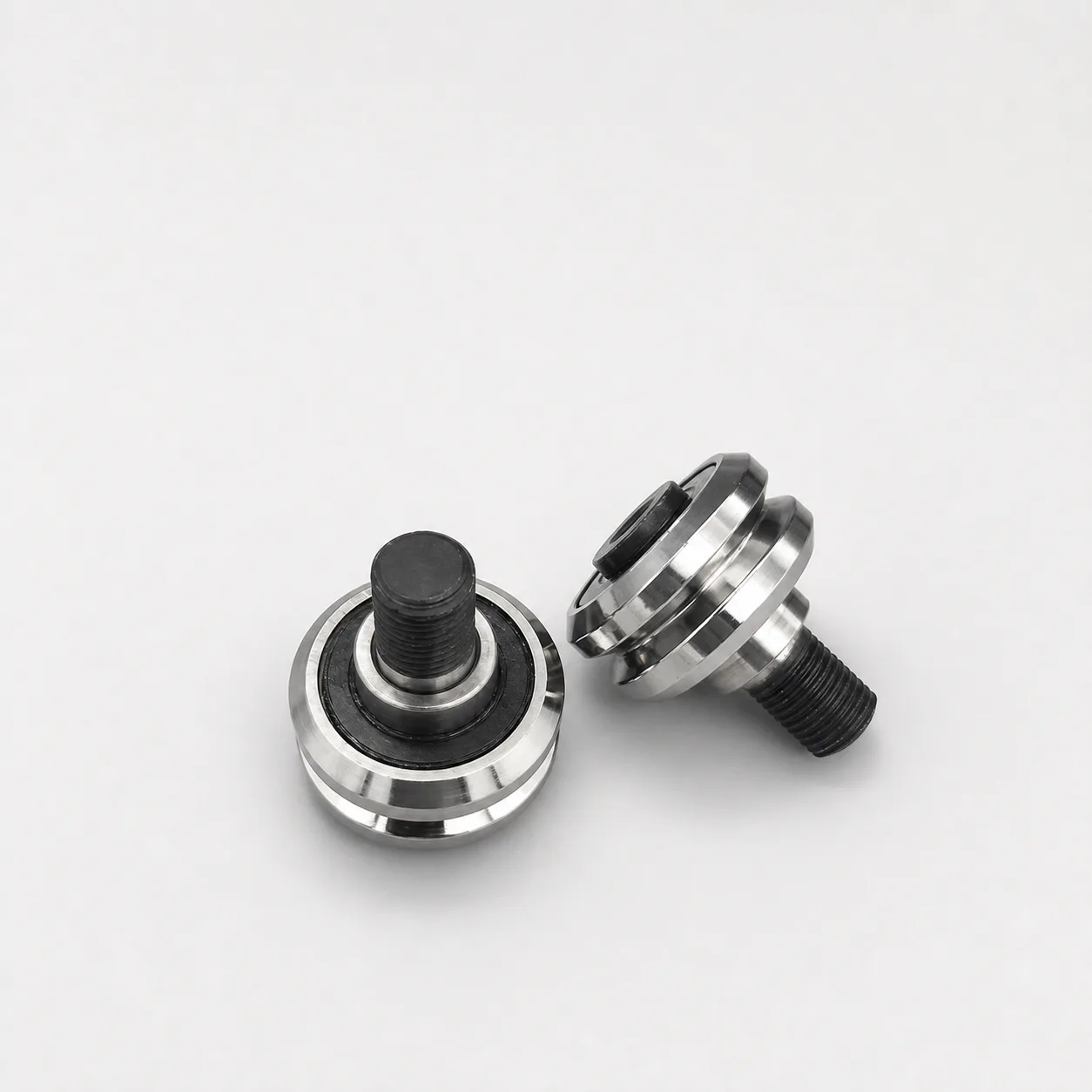

Ring Slide Bearing: Separated Inner Ring

?
The problem: Ring slides in battery and medical production lines run continuous cycles with frequent starts and stops — bearings must stay stable long-term and assemble consistently in volume.
Δ
Structural change: The original inner ring was integral, locked to the shaft by a single screw. We separated the inner ring from the shaft — the ring becomes an independent part with a full-circumference fit.
✓
Key controls: Fit tolerance and concentricity between ring and shaft, datum for the separation face, radial / axial clearance — confirmed against machine duty.
□
Evidence: Assembly and unit photos on file. Manufactured by NLHB.
→
Result: Independent assembly, consistent batches, clear maintenance path — suited to continuous production-line duty.
I have a similar application See the process
In Production 4000TNFB custom double-row angular contact roller bearing - thick outer ring, inch bore

4000TNFB / 4002TNFB: Inch-Bore Thick-Wall Roller

?
The problem: Roller conveyor and guide positions need inch mounting dimensions and a stiffer outer ring — standard series don't line up.
Δ

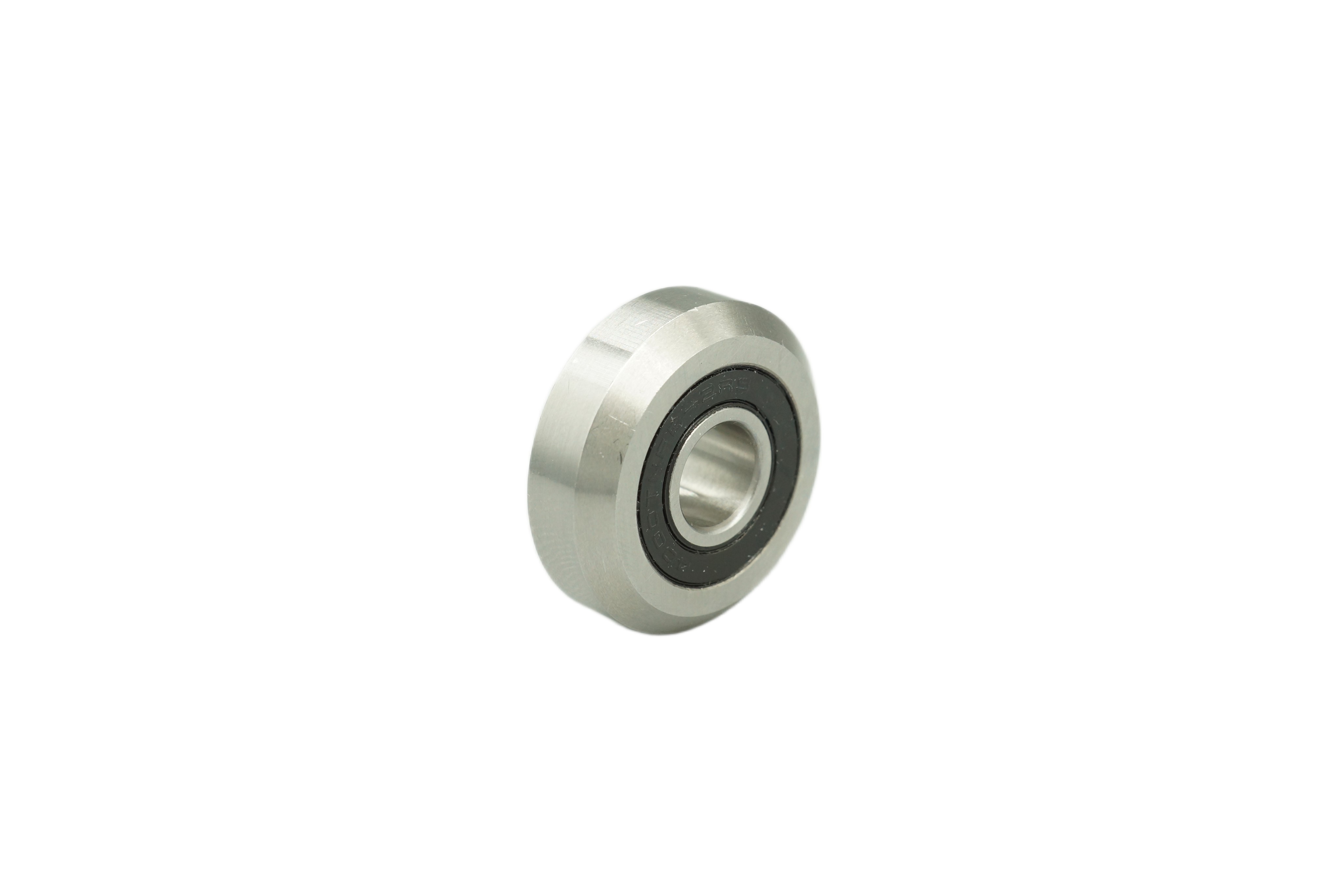

Structural change: Custom double-row angular contact structure, inch bore + thickened outer ring, matched to existing mounting space and radial load.
✓
Key controls: Inch-bore tolerance, outer-ring wall uniformity, double-row raceway consistency, radial clearance.
□
Evidence: In production at NLHB, with part photos and dimensional records.
→
Result: Standardized against inch mounting space and load duty; in pilot / production control.
Quote a similar structure See angular contact
NLHB Improved Structure BC05 high-speed textile bearing with ceramic balls

BC05 High-Speed Textile Bearing: Ceramic Balls

?
The problem: High-speed textile positions push steel balls to their heat and wear limits, threatening yarn-path stability.
Δ

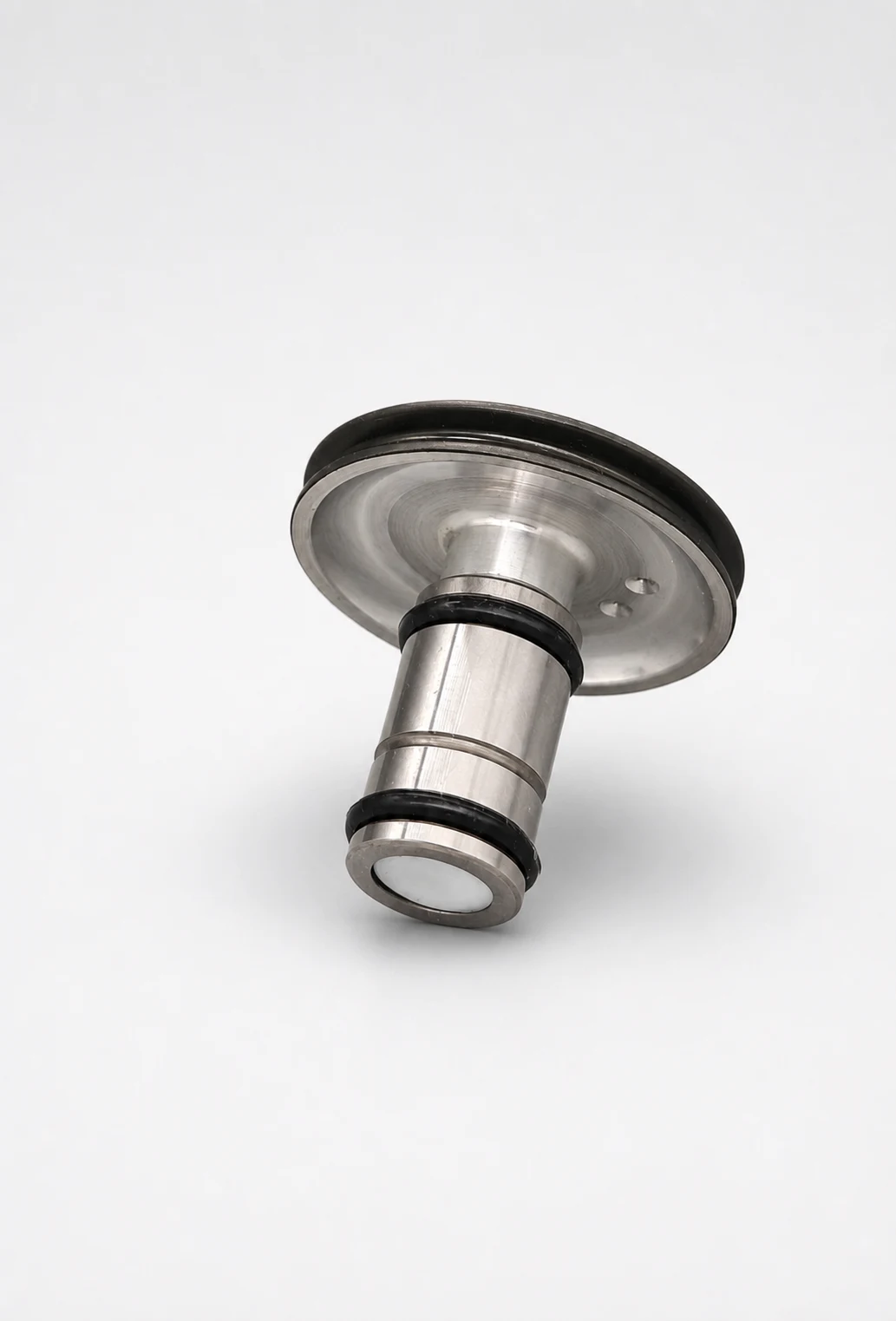

Structural change: Hybrid construction — ceramic rolling elements, using their lower density and cooler running for high-speed duty.
✓
Key controls: Ball grade and raceway match, cage guidance at speed, temperature-rise and noise verification — per machine position.
□
Evidence: Part photo on file. Application conclusion from NLHB's actual textile duty (rapid yarn-straightening position).
→
Result: Running in high-speed yarn-straightening positions; ceramic balls better matched to continuous high-speed duty.
Quote a ceramic-ball design See the process
Custom Structure DK13740 tensioner bearing

DK13740: Tensioner Bearing

?
The problem: Belt / timing-drive tensioner positions must run smooth and reliable under continuous tension.
Δ

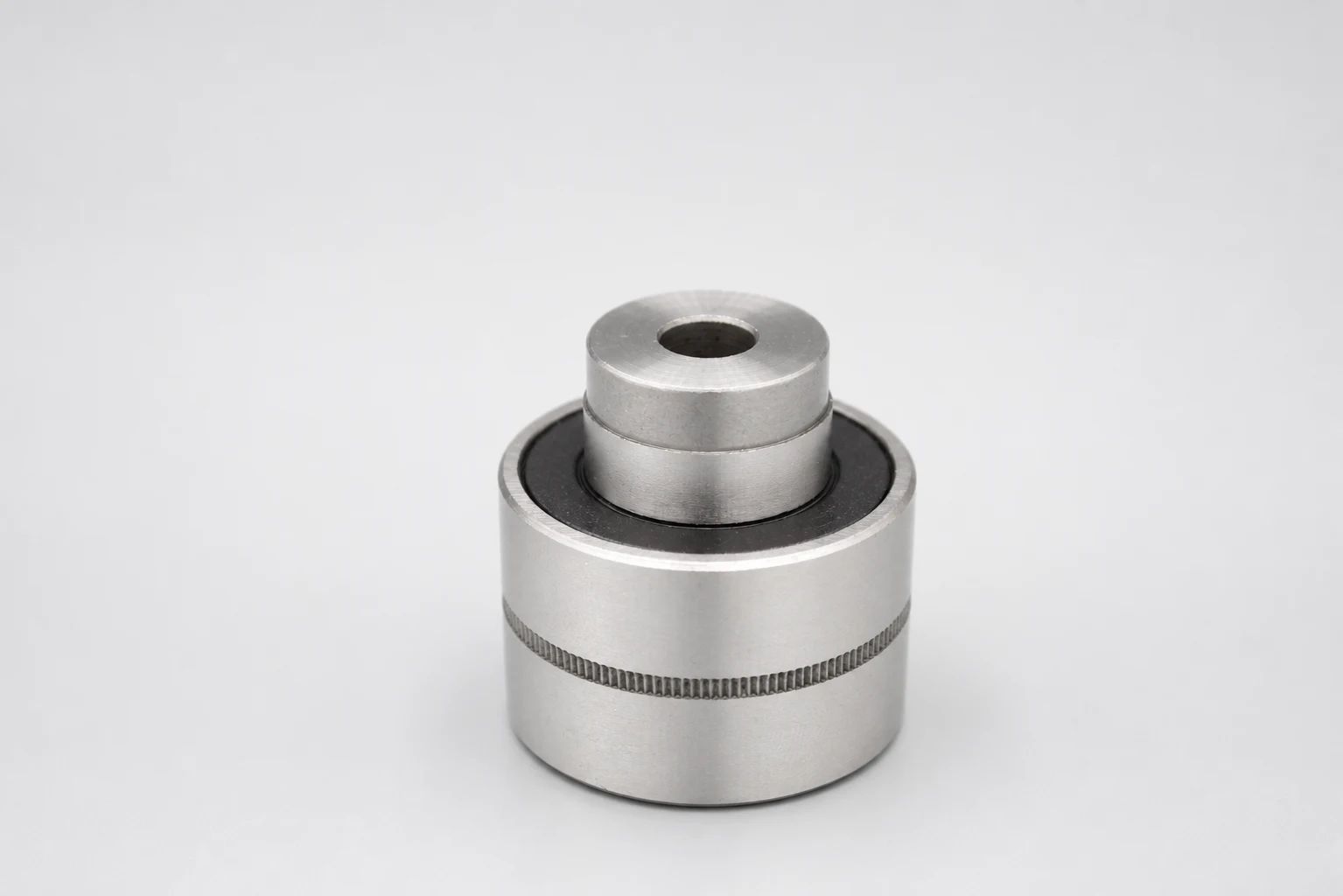

Structural change: Tensioner-specific structure, customized to tension load and mounting method.
✓
Key controls: Radial clearance, sealing type, tension load and speed matching — per application (textile / conveying / automotive).
□
Evidence: Part photo on file.
→
Result: In continuous-tension duty; smoothness and life controlled to machine requirements.
Quote tensioner bearings See the process
Structures We've Built

Non-standard structures we have made

Every category is backed by NLHB parts, production records or reverse-engineering data. Don't see your structure? Send the drawing — we start with a manufacturability review.

634V 100-degree V-groove outer ring roller bearing
RINGS ON FILE

Grooved Outer-Ring Guide Rollers

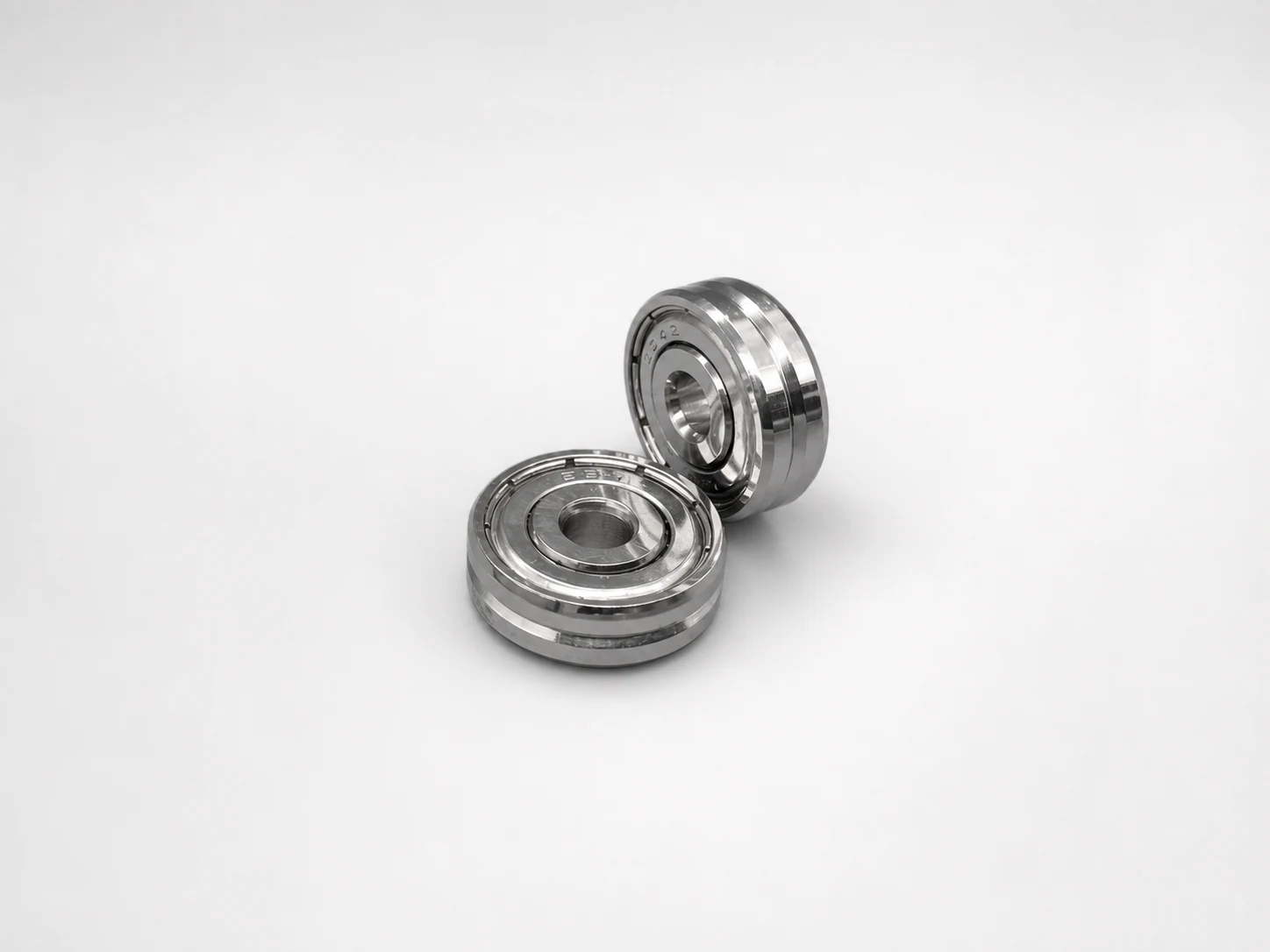

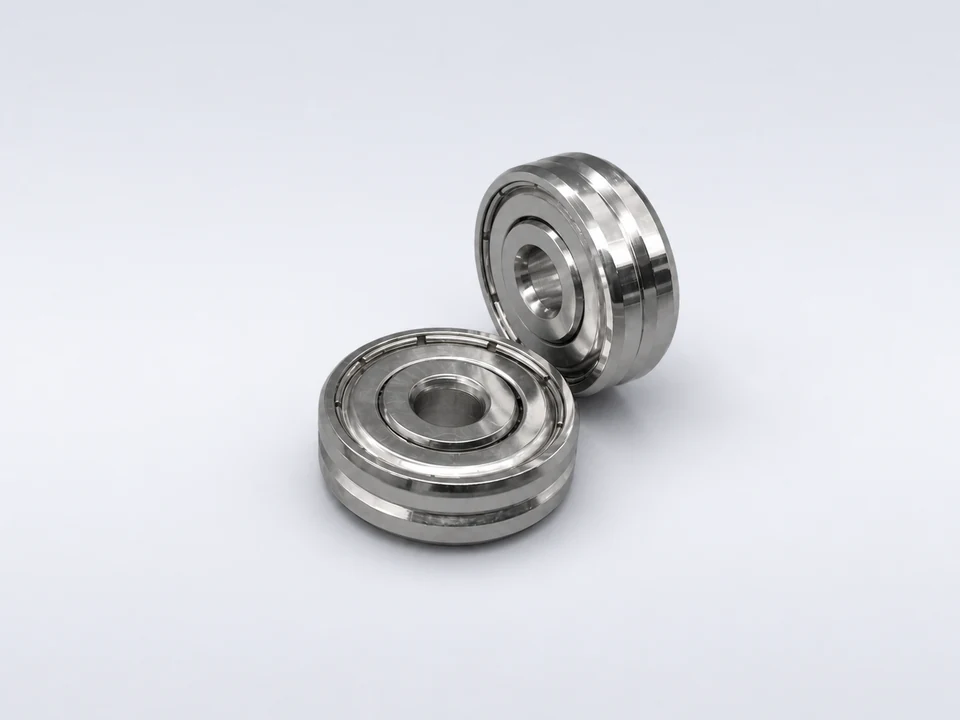

V-groove / O-groove guide rollers (photo: 634V 100°). SG / VW / LFR series rings on file. Groove angle and radius matched to the rail profile.

Thin-wall sleeve and extended inner ring batch
IN PRODUCTION / REVIEWABLE

Thin-Wall Sleeves / Extended Bores

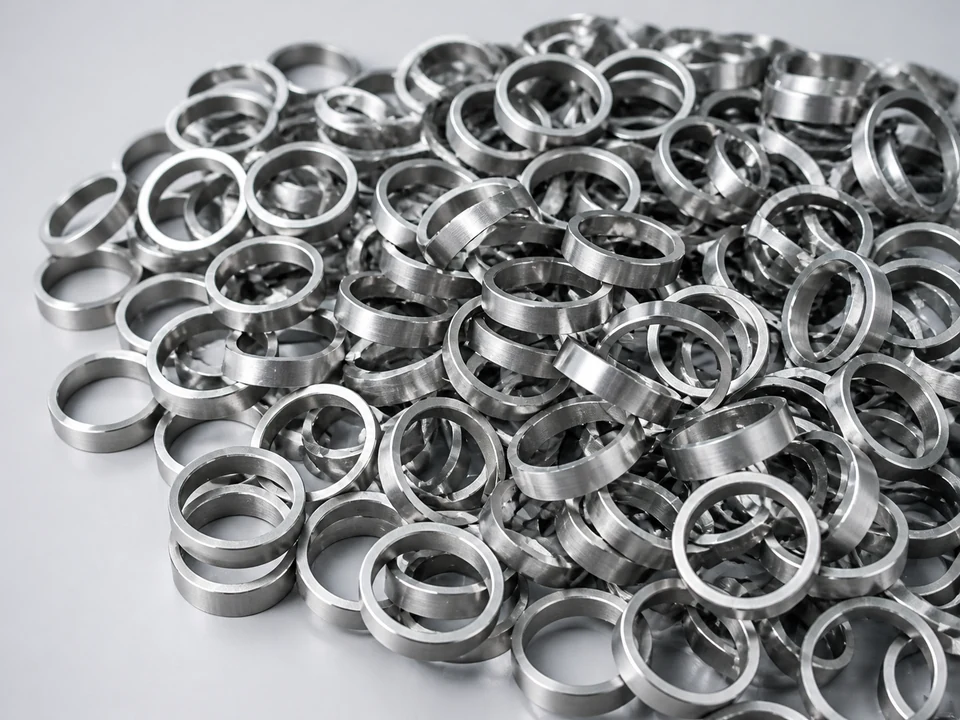

For tight mounting space or long shaft spans. Turning work-holding and grinding datums are the hard part — we review against your drawing and envelope.

4002TNFB double-row angular contact custom bearing
NLHB IN PRODUCTION

Double-Row Angular Contact Variants

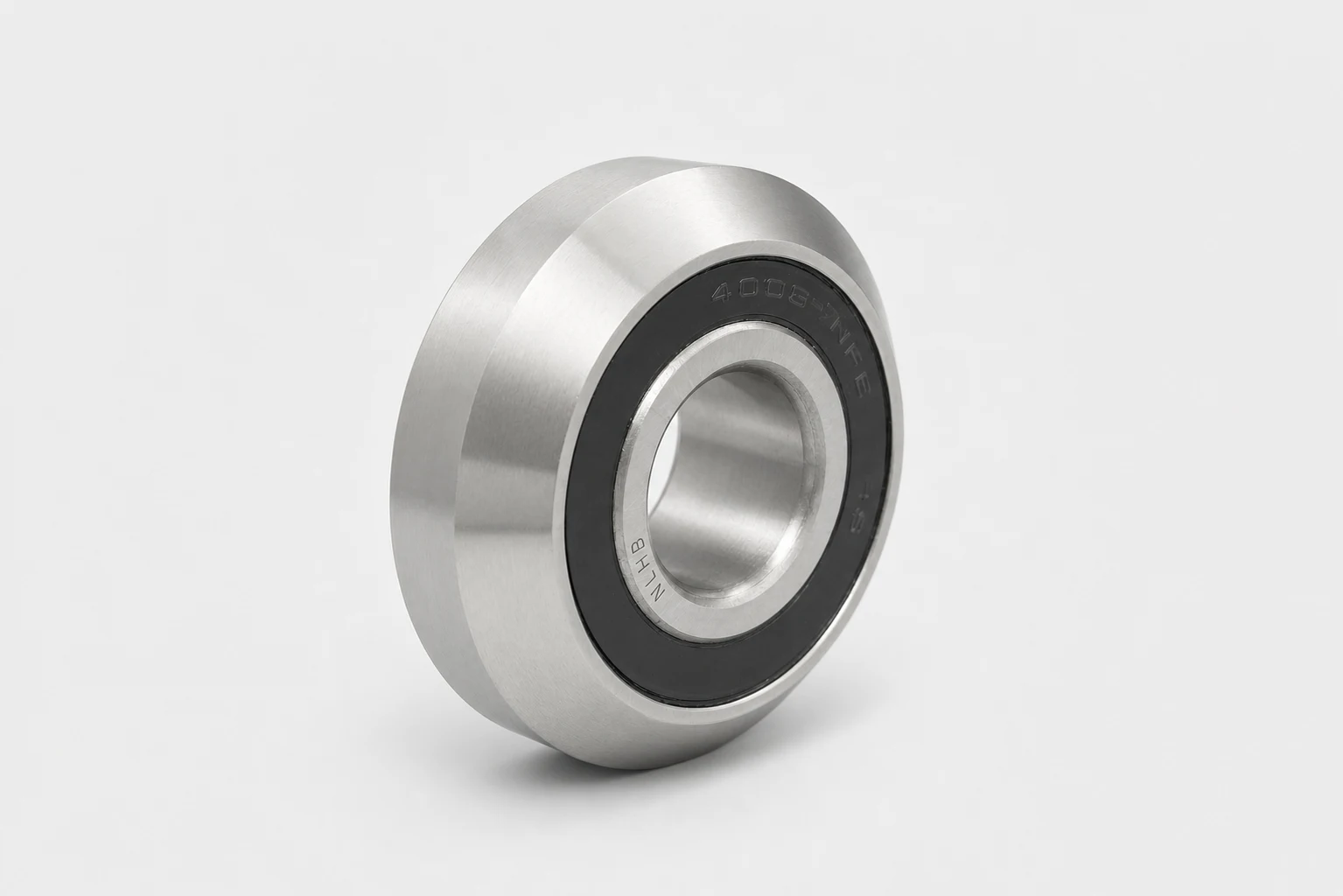

Inch bores, thickened outer rings in production. 5203-2RS reverse-engineering on file with raceway consistency and noise records. Combined radial + axial loads are a fit.

Embroidery machine bearing - textile machinery
PARTS ON FILE

Textile-Machine Bearings

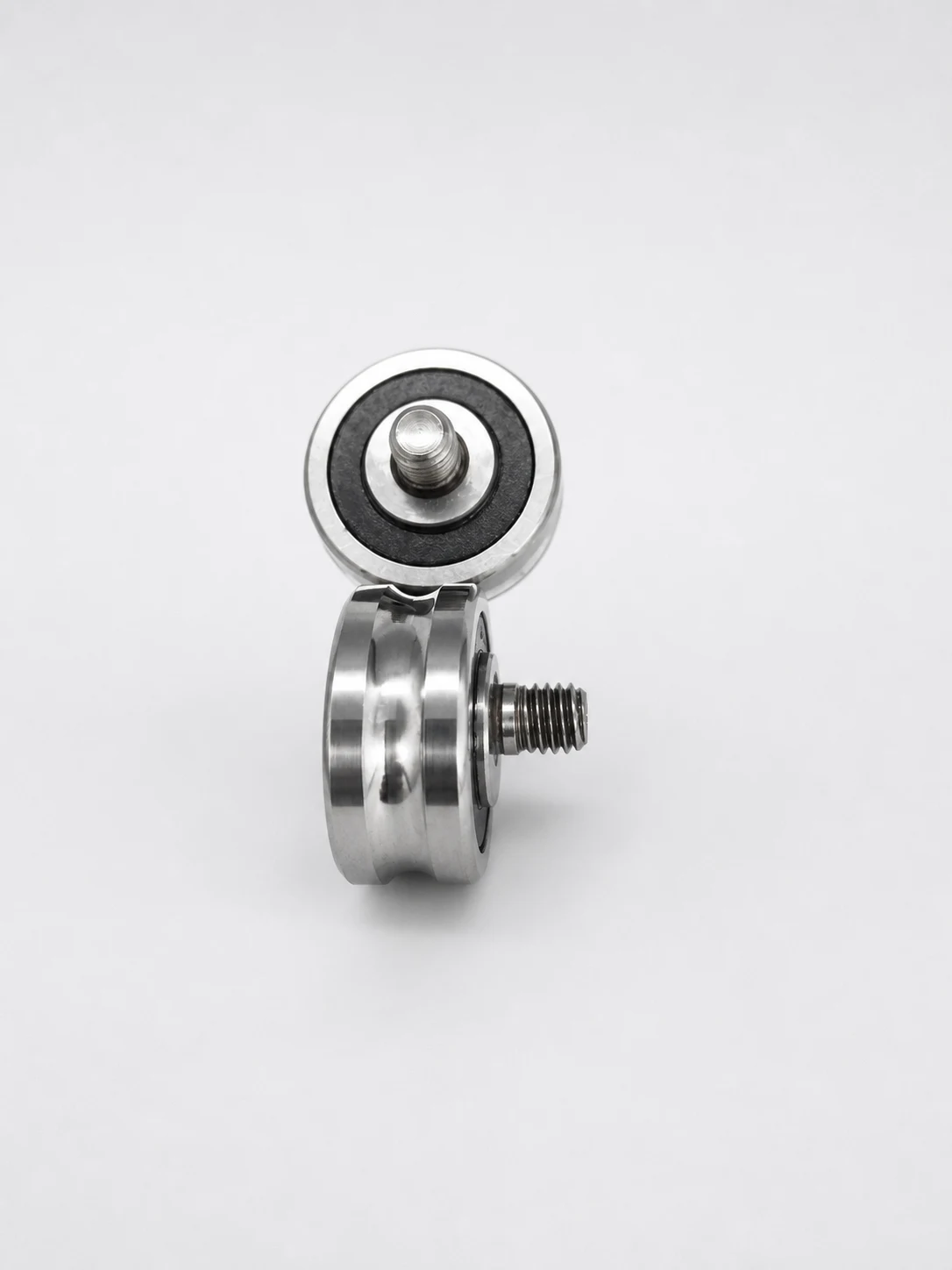

Embroidery head high-speed oscillation, yarn-straightening high-speed rotation. Same model, different position, different structure — reviewed per machine position.

LFR5201 crowned outer ring roller bearing
PARTS ON FILE

LFR Crowned-Roller Series

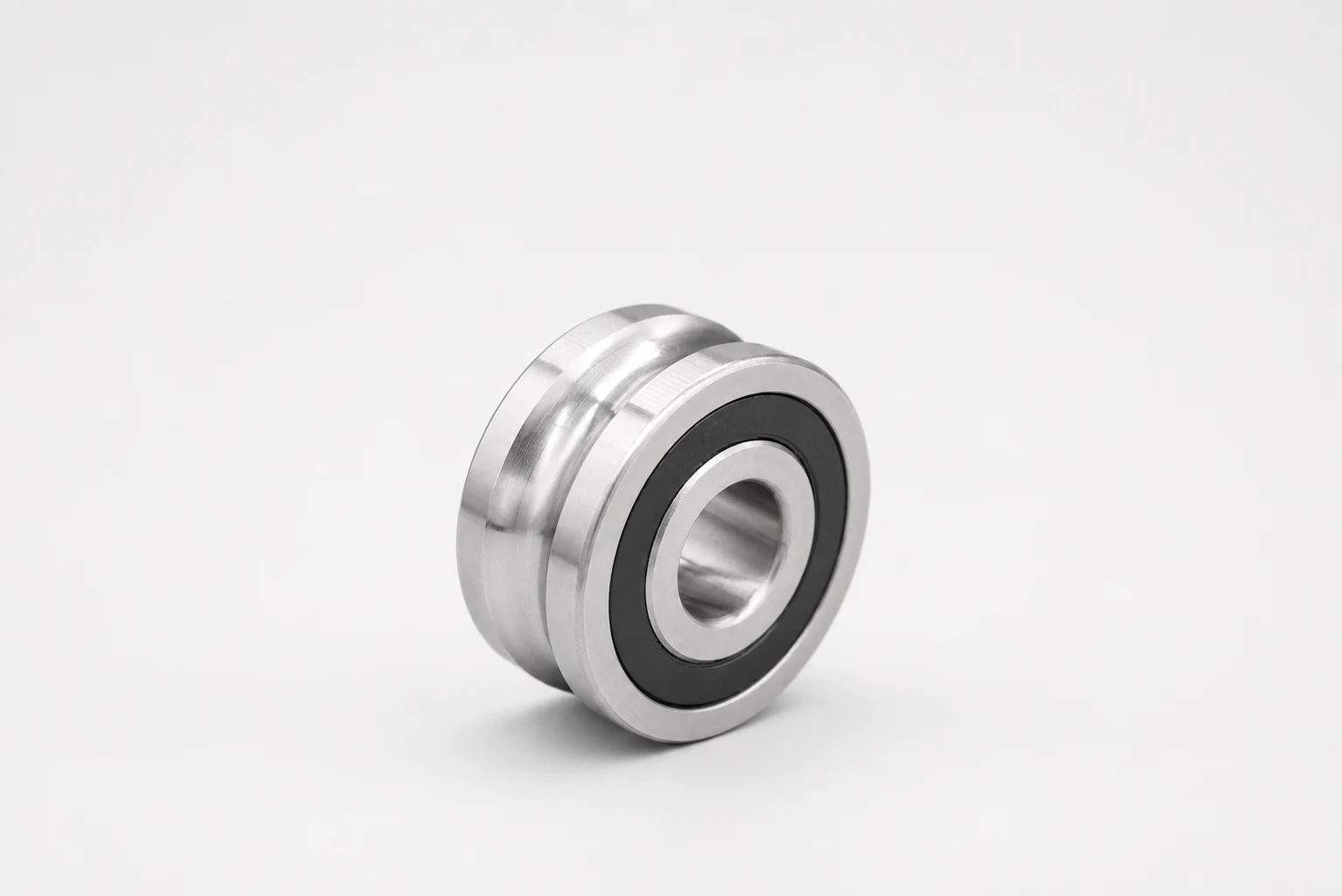

Crowned (spherical) outer-ring rollers (photo: LFR5201). R500 is the crown radius, not a 500 mm O.D.; crown radius and clearance selected against the rail contact surface.

Engineering Process

From requirement to batch: six evidence steps

01

Requirement In

Drawing, sample, or duty description

02

Manufacturability Review

Can we make it — and how

03

Technical Sign-off

Dimensions, clearance, seals, noise targets

04

Sample Build

First articles with inspection records

05

Customer Validation

Machine trial, feedback loop

06

Version Freeze

Locked standard for batch production

Quality Evidence

Product + inspection action + recorded result

Inner ring roundness inspection - double row angular contact

Inner-Ring Roundness

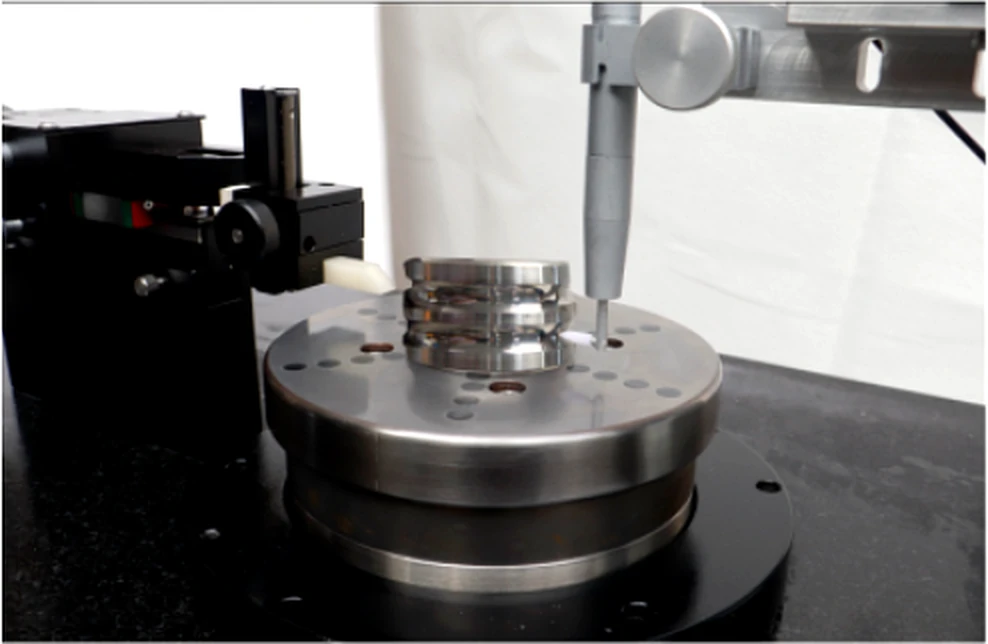

Roundness inspection on double-row angular contact rings.

Raceway profile and R-value inspection

Raceway Profile / R-Value

Profile inspection of finished raceways against drawing.

S910 vibration test closeup

S910 Vibration Test

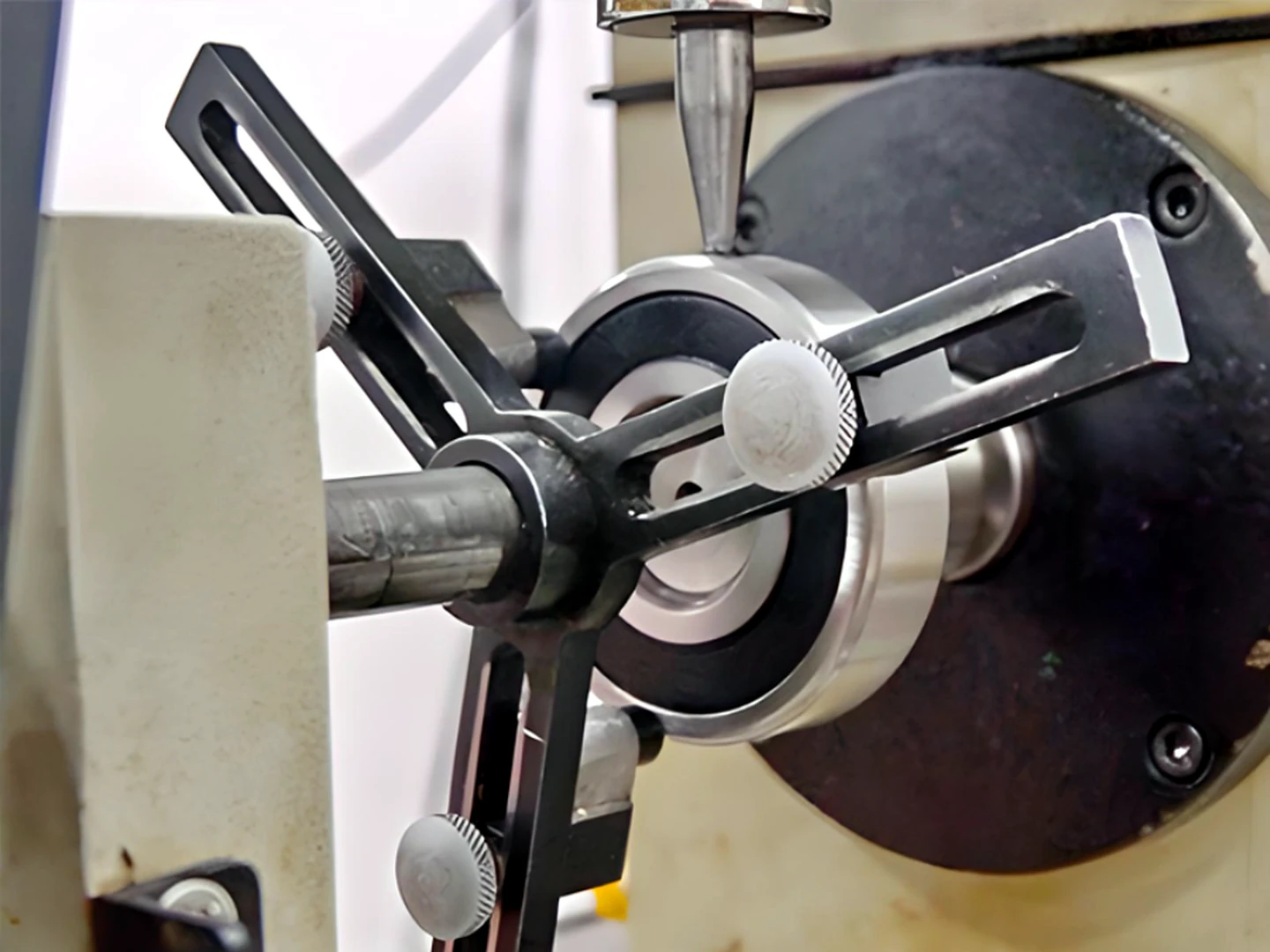

Vibration (noise) testing to group standards.

FAQ

Before you start a custom project

No drawing — can you still work with us?
Yes. Send the operating conditions (machine type, speed, load, environment) plus anything dimensional — a sample, photos with a reference scale, or d / D / B. We reverse-engineer from samples.
How fast is sampling? What's the MOQ?
Both depend on structure and current capacity. We quote timeline and MOQ per project after the manufacturability review — not a fixed catalog number.
Can you make any custom bearing?
No — and we'll say so early. If a structure doesn't fit our processes (e.g. ring turning limits, heat-treatment constraints), the review flags it before you spend money on tooling.
Will production stay consistent?
That's what the version freeze is for: dimensions, clearance, noise targets and inspection plan are locked with the sample approval, and batch records are kept against that standard.
Engineering Review

Tell us the duty. We'll tell you what it takes.

Drawing, sample, or just the problem — send what you have. The first reply is an engineering judgment, not a price list.

Start an Engineering Review [email protected]
