BB4477

d 4.064 × D 10.414 × B 6.604 mm

The BB4477 is an aircraft bearing with bore 4.064mm, outer diameter 10.414mm, and width 6.604mm.

Original catalog dimensions: 0.16 × 0.41 × 0.26 in. Metric values are converted using 25.4 mm/in.

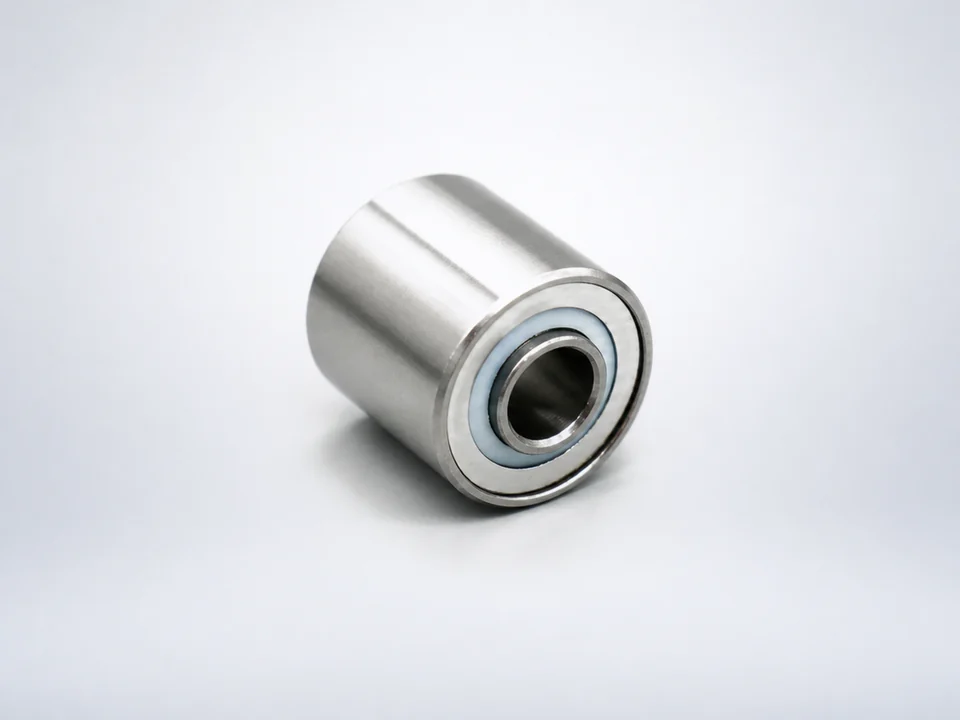

BB4477 — representative product photo
Representative product
BB4477 · 4.064x10.414x6.604 mm

📋 Technical Specifications

Bore (d)
4.064mm
Outer Dia. (D)
10.414mm
Width (B)
6.604mm

Load ratings and reference speed for this model are provided with your quotation.

Bearing typeAircraft Bearings
SeriesRadials
Seal typeOpen
MaterialConfirmed per inquiry — grade and certificate availability reviewed before quotation
Bore typeConfirmed per drawing
Original catalog dimensions0.16 × 0.41 × 0.26 in
Dimension unitmillimeter (mm) display; original catalog dimensions in inch

📐 Detailed Dimensions

Basic dimensions (mm)

Bore diameter (d)4.064
Outer diameter (D)10.414
Width (B)6.604

Corner radius, shoulder dimensions, fits and tolerances are confirmed against the requested suffix and application drawing before quotation.

📑 Drawings & 3D Model

📑
2D Drawing
Request drawing →
📅
3D STEP Model
Request STEP →
🔎
CAD File
Request CAD →

Drawings and 3D models are provided per inquiry. Tell us your application and we will send the appropriate file format (DXF, DWG, STEP, IGES).

⇄ Same-size Bearings & Reference Options

The models below share the 4.064x10.414x6.604 mm boundary dimensions. Matching d/D/B alone does not prove interchangeability; verify seals, clearance, ring features, load ratings, fits, and application conditions before replacement.

No other catalog models share the same boundary dimensions.

⚙ Typical Applications

Aircraft landing gear
Flight control systems
Aerospace mechanisms
Jet engine accessories
Helicopter components

Why choose NLHB?

Manufactured and inspected at our Cixi, Ningbo plant (founded 2002) — turning, raceway grinding, super-finishing, assembly and S910 / roundness testing in-house. Specification, tolerance, clearance and lead time are confirmed before quotation.

About NLHB →
4,000+
Models
20+
Years
RFQ
Specification Confirmed

❓ Frequently Asked Questions

What are the dimensions of BB4477?
The BB4477 bearing has bore (d) = 4.064 mm, outer diameter (D) = 10.414 mm, and width (B) = 6.604 mm.
What is the load rating of BB4477?
Load ratings for this model are provided with your quotation. Send the full model code, quantity and application, and we will confirm Cr and C0r.
What bearing series does BB4477 belong to?
The BB4477 belongs to the Radials within the Aircraft Bearings category.
Can NLHB supply BB4477 equivalents from other brands?
NLHB manufactures dimensionally compatible standard and custom bearings at our Cixi factory. Tolerance, clearance, seal and grease specifications are verified against your drawing or application before quotation. All third-party trademarks belong to their respective owners.
How do I order BB4477 from NLHB?
Click "Request Quote" and send us your quantity, application, and required specifications. We review the specification, supply route, lead time, and pricing before issuing a quotation. Response time depends on specification complexity.
What materials are available for BB4477?
Standard series are produced in GCr15 (AISI 52100) bearing steel, with stainless steel (440C / 9Cr18Mo) or hybrid ceramic (Si3N4 balls) available depending on model and batch quantity. Material certificates and batch inspection records are confirmed before quotation when required.
