3900Double-Row Angular Contact Ball Bearings

3901

d 12 × D 24 × B 10 mm

The 3901 is a double-row angular contact ball bearing with bore 12mm, outer diameter 24mm, and width 10mm rated for dynamic load 4.2 kN.

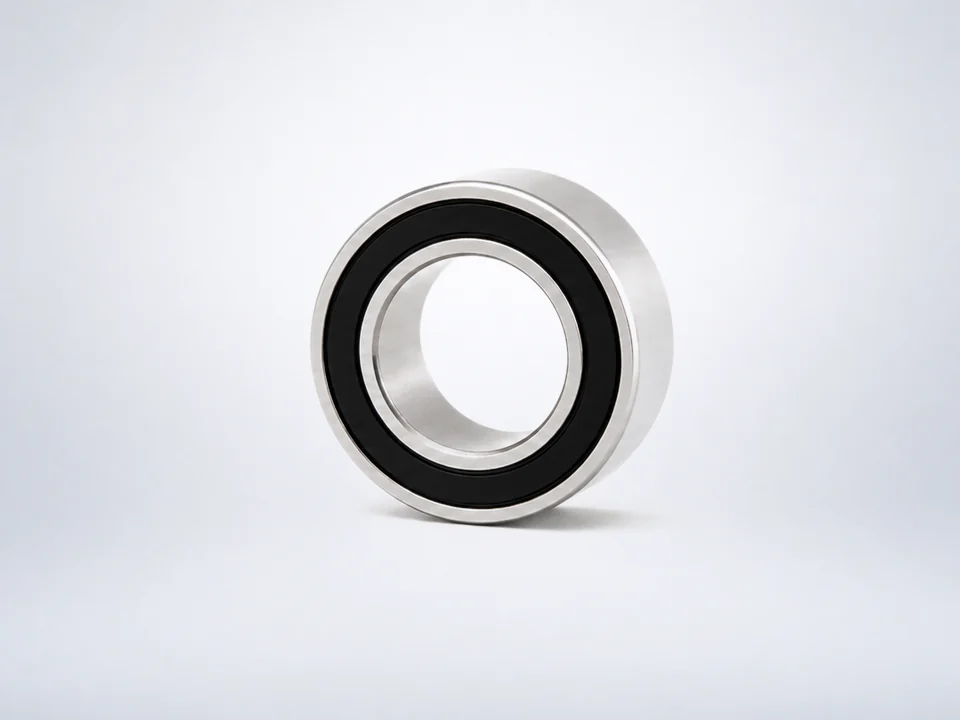

3901 — representative product photo
Representative product
3901 · 12x24x10 mm

📋 Technical Specifications

Bore (d)
12mm
Outer Dia. (D)
24mm
Width (B)
10mm
Dynamic Load (Cr)
4.20 kN(4200 N)
Static Load (C0r)
2.80 kN(2800 N)
Reference Speed
14000rpm
Bearing typeDouble-Row Angular Contact Ball Bearings
Series3900
Seal type2RS (rubber seals) or ZZ (metal shields)
MaterialConfirmed per inquiry — grade and certificate availability reviewed before quotation
Bore typeConfirmed per drawing
Dimension unitmillimeter (mm)

📋 Nominal Variants by Seal Type

Catalog variants open a detail page. Inquiry-only configurations go directly to RFQ.

Seal TypeModel CodeTypical Use
Double metal shields3901 ZZ (inquiry only)General dust protectionQuote →
Double contact rubber seals3901 2RS (inquiry only)Dust and moisture protection at moderate speedQuote →
Double non-contact rubber seals3901 2RZ (inquiry only)Lower-friction sealing at higher speedQuote →
C3 radial clearance3901 C3 (inquiry only)Motors and applications with higher operating temperatureQuote →

📐 Detailed Dimensions

Basic dimensions (mm)

Bore diameter (d)12
Outer diameter (D)24
Width (B)10

Corner radius, shoulder dimensions, fits and tolerances are confirmed against the requested suffix and application drawing before quotation.

📑 Drawings & 3D Model

3901 bearing dimension drawing, 12 x 24 x 10 mm
3901 dimension drawing: bore d 12 mm × outer diameter D 24 mm × width B 10 mm. Tolerance class ABEC-1 (P0). Internal design is shown schematically. Supplied sealed: 2RS (rubber seals) or ZZ (metal shields).
📑
2D Drawing (PDF)
Download PDF →
📐
2D DXF File
Request DXF →
📅
3D STEP Model
Request STEP →

The PDF drawing is free to download. DXF and 3D STEP files are sent on request: tell us the model and your application, and we reply with the CAD files.

⚡ Source-Data Reference Speed

Catalog reference
14,000 rpm

Lubrication method and application speed limit are confirmed per inquiry; no oil-speed value is derived from this number.

⇄ Same-size Bearings & Reference Options

The models below share the 12x24x10 mm boundary dimensions. Matching d/D/B alone does not prove interchangeability; verify seals, clearance, ring features, load ratings, fits, and application conditions before replacement.

No other catalog models share the same boundary dimensions.

⚙ Typical Applications

Pumps
Compressors
Gearboxes
Automotive wheels
Material handling
Textile machinery

Why choose NLHB?

Manufactured and inspected at our Cixi, Ningbo plant (founded 2002) — turning, raceway grinding, super-finishing, assembly and S910 / roundness testing in-house. Specification, tolerance, clearance and lead time are confirmed before quotation.

About NLHB →
4,000+
Models
20+
Years
RFQ
Specification Confirmed

❓ Frequently Asked Questions

What are the dimensions of 3901?
The 3901 bearing has bore (d) = 12 mm, outer diameter (D) = 24 mm, and width (B) = 10 mm.
Is there a 3901 drawing or CAD file?
Yes. The 3901 dimension drawing (PDF) is free to download on this page. DXF and 3D STEP files are sent on request: tell us the model and your application.
What is the load rating of 3901?
Dynamic load rating (Cr) = 4.20 kN (4200 N), static load rating (C0r) = 2.80 kN.
What tolerance class is the 3901?
The standard tolerance class of the 3901 is ABEC-1 (P0) per GB/T 307.1, unless otherwise agreed.
What bearing series does 3901 belong to?
The 3901 belongs to the 3900 within the Double-Row Angular Contact Ball Bearings category.
Can NLHB supply 3901 equivalents from other brands?
NLHB manufactures dimensionally compatible standard and custom bearings at our Cixi factory. Tolerance, clearance, seal and grease specifications are verified against your drawing or application before quotation. All third-party trademarks belong to their respective owners.
How do I order 3901 from NLHB?
Click "Request Quote" and send us your quantity, application, and required specifications. We review the specification, supply route, lead time, and pricing before issuing a quotation. Response time depends on specification complexity.
What materials are available for 3901?
Standard series are produced in GCr15 (AISI 52100) bearing steel, with stainless steel (440C / 9Cr18Mo) or hybrid ceramic (Si3N4 balls) available depending on model and batch quantity. Material certificates and batch inspection records are confirmed before quotation when required.
